General

Our technical team can help to design, modify and reverse engineer to your specification.

R Baker (Electrical) Ltd have a dedicated in-house product manufacturing team who design, manufacture and supply an extensive range of certified distribution and fuse panels for use across a range of sectors including hazardous areas and military application.

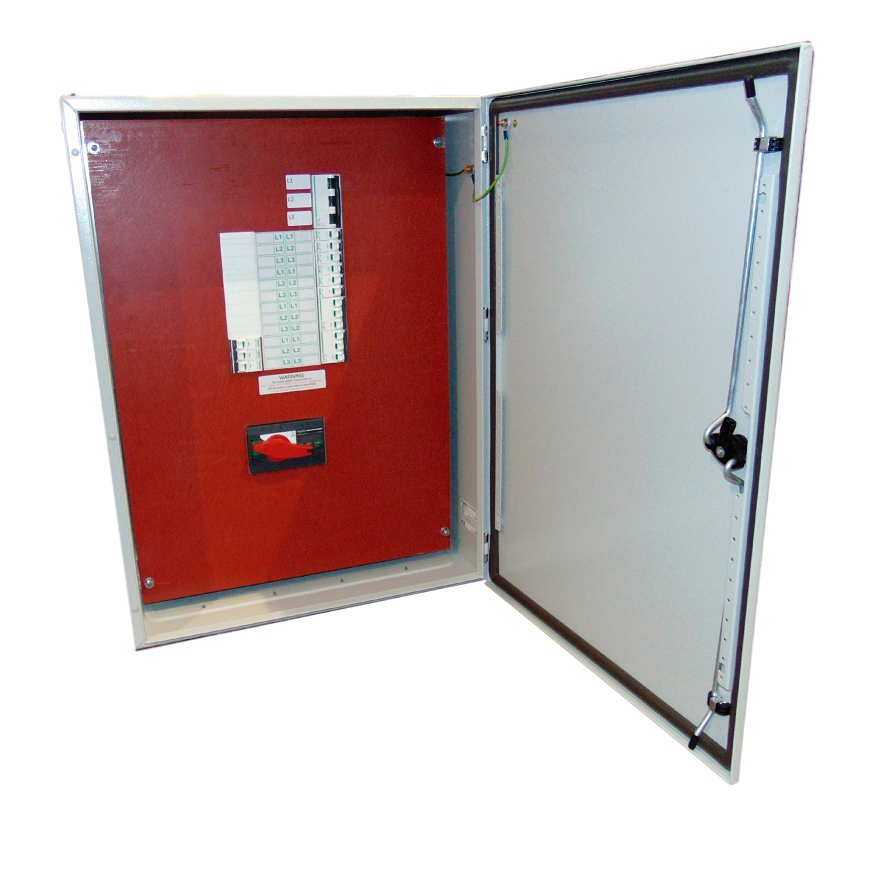

Our distribution panel range

R Baker (Electrical) Ltd have a dedicated in-house product manufacturing team who design, manufacture and supply an extensive range of certified distribution and fuse panels for use across a range of sectors including hazardous areas and military application.

Our team can supply standard panels or design and manufacture custom build distribution and fuse panels. By having the latest design capabilities, test facilities and the latest electrical AutoCAD design software we are able to offer a full manufacturing service. Our fully equipped workshop is staffed by experienced electrical panel builders based at our manufacturing facility in Liverpool. They, together with our team of project engineers, enable us to offer you a complete solution to your requirements.

Having a vast amount of experience we custom build a wide range of distribution and fuse panels from MCCB distribution panels for military application, to one off bespoke fuse panels for specific ATEX applications.

Our fully qualified personnel work to the highest standards in panel wiring and assembly; ensuring full functionality and ease of use. Using standard electrical enclosures or purpose-designed ATEX enclosures, we can offer assembly which involves any combination of conventional MCCB, fuses, earth monitoring and isolation switches. All are certified to the latest BSEN61439 standard.

R Baker (Electrical) Ltd also offer a full electrical installation service; which ensures our team offer you a full design, manufacture, and installation service working to the latest industrial standards. Our dedicated team offer our customers unrivalled service for time and cost efficiency for the manufacturing of distribution and fuse panels.

Our ATEX distribution panel range

We provide custom built explosion-proof distribution and fuse panels according to ATEX standards, this equipment can be utilised in Zone 1 and Zone 2 environments. Our technical team can help to design, modify and reverse engineer to your specification or to agree design features. All of our manufactured equipment can be supplied with full working drawings, component lists and written instructions in any language.

We pride ourselves on excellent customer service, offering short lead-times for jobs that just can't wait. All our quality standards and procedures are monitored independently to BS EN ISO 9001:2000 and are subject to regular external and internal audits. We also work with all the leading testing and quality authorities such as ATEX, IECEx, BSI, DNV, Lloyds, NSN, Nemko and VDE to give you total peace of mind.

Working with the leading offshore and marine companies, we have developed our range of ATEX panels to be used in the arduous environments of oil rigs and other areas with high levels of vibration and humidity. However, by utilising our full design capabilities, we offer a manufacturing service to a wide range of sectors; including petrochemical, pharmaceutical, rail, defence and nuclear.

R Baker (Electrical) Ltd will generate an inspection report to accompany the final shipment of all control systems. In addition, an electronic project folder is created for each project to ensure that all relative documents, emails and certifications are traceable for years to come.

Panel range

  • LV Switchboards
  • LV Distribution boards
  • Motor control centres
  • Heating and ventilation control panels
  • Control consoles and mimics
  • Generation control panels
  • Lighting control panels
  • Automatic & manual change over panels
  • PLC and relay interface panels/racks
  • Single/twin starters (industrial & hazardous area)
  • Terminal junction boxes (industrial & hazardous area)
  • Push button stations (industrial & hazardous area)
  • ATEX certified equipment
  • Zone 1 and Zone 2 hazardous areas panels

Case studies

UPS & distribution panels

In 2012 we worked in partnership with Babcock Marine to design and manufacture a 20 ft container to house a UPS system, transformers, circuit isolation and four distribution panels which would sit onboard HMS Albion while in Dock. Our team had 14 weeks to complete this job and help install the equipment onboard in Plymouth.


Design of fuse panels

We enjoy a strong relationship with BAE Systems Ltd and manufacture a wide range of fuse and distribution panels. Our team designed and manufactured over 200 fuse panels for the construction of the Fast Attack Crafts; which were manufactured for the Greek Navy. This consisted of design, prototypes and manufacture within a short lead time due to changes within the ship design.

11case_st_

Features & benefits

  • Short lead times with competitive prices
  • Robust and durable construction
  • Bespoke solutions
  • Wide range of input and output voltages available
  • Supplied with ATEX approved transformers
  • Plug and socket options include ATX, CEAG, STAHL and Marechal

Product overview

Cooling Air (A/N)

Sectors All sectors

Enclosure Up to IP66

Location UK
