Transformers play a crucial role in power distribution, adjusting voltage levels to meet specific needs. When it comes to selecting the right transformer, understanding transformer ratings is essential. Here at R Baker (Electrical) Ltd, we aim to simplify complex electrical concepts. In this guide, we break down what transformer ratings mean, why they matter, and how to determine the right rating for your application.
What Are Transformer Ratings?
Transformer ratings indicate the maximum power capacity that a transformer can handle safely. Ratings help in ensuring transformers operate within safe limits. Typically, transformer ratings are expressed in kilovolt-amperes (kVA), a measurement reflecting both voltage and current capacity. Understanding these ratings is vital for effective and safe transformer use.
Why Are Transformer Ratings Measured in kVA?
Many people wonder why transformer ratings use kVA instead of kilowatts (kW). Transformers deal with both real power (measured in kW) and apparent power (measured in kVA). Unlike machines that produce mechanical power, transformers transmit electric power without considering power factor losses. Therefore, kVA rating provides a clear measure of a transformer’s capacity to handle both voltage and current, regardless of load conditions.
Key Factors That Define Ratings
Several factors contribute to the overall transformer rating. Understanding these factors allows users to make informed decisions.
– Voltage and Current Levels: Transformers need to withstand specific voltage and current levels. Ratings ensure the transformer operates efficiently within these limits.
– Frequency: Transformers are rated based on their operating frequency, often either 50Hz or 60Hz. Operating at the incorrect frequency can damage the transformer.
– Power Factor: The power factor represents the phase difference between voltage and current. Higher power factors increase efficiency, affecting transformer ratings indirectly.
Each factor contributes to defining the correct transformer for specific applications.
Types of Transformer Ratings
Different ratings describe various aspects of a transformer’s capabilities. Below are the main types:
1. Voltage Rating: The voltage rating specifies the maximum voltage the transformer can handle. It’s essential for ensuring compatibility with other components.
2. Current Rating: Current rating indicates the maximum current the transformer can carry without overheating. Exceeding this rating risks damaging the transformer.
3. kVA Rating: kVA ratings represent the total apparent power the transformer can handle. It’s the standard measure of a transformer’s overall power capacity.
4. Insulation Class: The insulation class indicates the maximum operating temperature a transformer can withstand. This class helps determine the lifespan of the transformer.
Understanding each rating type provides a clearer picture of transformer performance and limitations.
How to Calculate the Required Transformer Rating
Determining the right transformer rating involves a few calculations, particularly focusing on kVA. Here’s a simple method:
1. Determine Load Voltage and Current: First, identify the voltage and current of the equipment needing a transformer.
2. Calculate Power Requirement (kVA): Multiply voltage by current (in amps) and divide by 1,000 to get the kVA rating.
3. Factor in Safety Margins: Include a 20% safety margin in your calculations to avoid overloads.
For example, a device with a voltage of 400 volts and a current of 50 amps requires a 20 kVA transformer. Adding a safety margin, you may choose a 25 kVA transformer for extra protection.
Single-Phase vs. Three-Phase Transformer
Transformers come in single-phase and three-phase varieties, each with different applications and ratings.
– Single-Phase Transformers: Typically used for residential applications, single-phase transformers are rated based on the kVA required by smaller loads.
– Three-Phase Transformers: Used in industrial settings, three-phase transformers offer a more balanced power supply. Their ratings cover larger equipment and heavier loads.
Understanding whether you need a single-phase or three-phase transformer impacts your rating requirements.
Importance of Transformer Ratings in Different Industries
Correct ratings serve specific needs across sectors like defence, manufacturing, and energy. For example, high kVA ratings are essential in defence projects requiring high-voltage distribution. In manufacturing, precise voltage specifications ensure the safe operation of machinery. Each industry depends on accurate ratings to maintain efficiency and safety.
Common Issues with Transformers
Choosing the wrong transformer rating can lead to serious issues, including:
– Overheating: Overloading a transformer beyond its current rating results in excessive heat, potentially causing permanent damage.
– Reduced Efficiency: Incorrect ratings lead to inefficiency, wasting energy and increasing operational costs.
– Safety Risks: Operating at incorrect voltage ratings creates potential safety hazards, risking equipment failure and accidents.
Selecting the right transformer rating is not just about efficiency; it’s about ensuring the safety of both equipment and personnel.
Tips for Choosing the Right Transformer
Choosing the right transformer rating is crucial for optimal performance. Here are a few tips:
1. Consult with Experts: Working with experienced providers like R Baker (Electrical) Ltd ensures you receive the best advice.
2. Use Load Calculations: Performing accurate load calculations is essential for selecting the right kVA rating.
3. Plan for Future Needs: Choose a rating that accounts for potential future load increases.
4. Verify Compatibility: Ensure the transformer is compatible with your equipment’s voltage and frequency requirements.
Following these tips will help you select the correct transformer, avoiding future complications.
Transformer Ratings and Energy Efficiency
Energy efficiency is a priority for many industries today. Transformer ratings directly impact energy consumption. Using a transformer with the correct kVA rating minimises energy loss and improves efficiency. At R Baker (Electrical) Ltd, we emphasize selecting the right transformer rating to promote sustainable and cost-effective operations. Properly rated transformers not only save energy but also extend equipment lifespan.

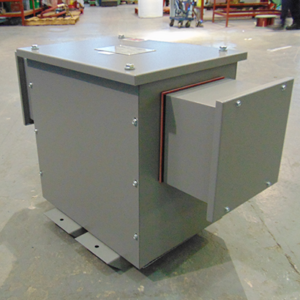

Transformer at R Baker (Electrical) Ltd
At R Baker (Electrical) Ltd, we understand the importance of choosing the right transformer. Our range of custom-built transformers includes units designed to meet specific kVA, voltage, and current requirements. With years of experience in the electrical industry, we provide expert guidance to ensure you receive the correct transformer for your needs. Whether you need assistance calculating the right rating or require a custom solution, we’re here to help.
Conclusion
Correct ratings are essential for transformers to operate safely and efficiently. Understanding kVA, voltage, and current specifications enables the selection of the right transformer for any application, whether industrial, residential, or specialized. At R Baker (Electrical) Ltd, we help our clients make informed choices, ensuring reliable and effective power distribution. For expert guidance on selecting the ideal transformer, contact us today.
